TERMINALS
FOR RECEPTACLES

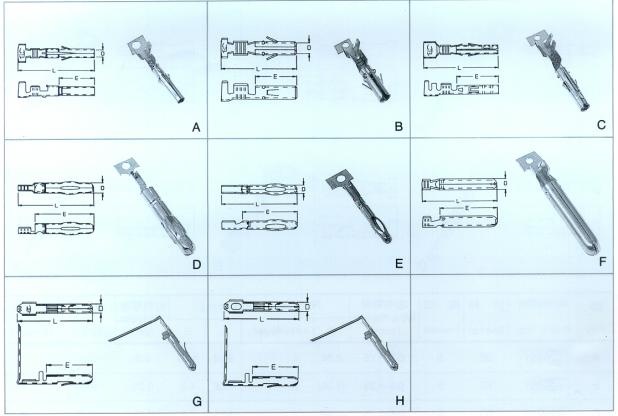

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
920601T |
BS |
S |
0.3-0.85 |
(1.6) |
/ |
/ |
16.6 |
7.6 |
0.2 |
4000 |
|
| B |
920611T |
BS |
S |
0.5-1.25 |
(2.35) |
/ |
/ |
16.6 |
9.0 |
0.3 |
3000 |
|
| C |
920615T |
BS |
S |
0.5-1.25 |
(2.0) |
/ |
/ |
23.7 |
13.2 |
0.3 |
3000 |
|
| D |
920701T |
BS |
1
3 |
0.3-0.5 |
3.81 |
/ |
4.4 |
27.4 |
21.3 |
0.3 |
4000 |
|
| D |
920702T |
BS |
1
3 |
0.3-0.5 |
3.81 |
/ |
4.4 |
27.4 |
21.3 |
0.3 |
4000 |
|
| E |
920704T |
BS |
1 |
0.3-0.5 |
2.16 |
/ |
3.0 |
19.2 |
13.9 |
0.3 |
10000 |
|
| D |
920711T |
BS |
1 |
0.13-0.2 |
3.81 |
/ |
4.5 |
27.4 |
21.3 |
0.3 |
4000 |
|
| F |
920901T |
BS |
N |
1.25-2.0 |
4.72 |
/ |
/ |
31.8 |
24.4 |
0.7 |
2000 |
CSA UL |
| G |
*921001T |
BL |
S |
/ |
2.35 |
/ |
/ |
18.8 |
11.5 |
0.3 |
5000 |
|
| H |
*921002T |
BL |
S |
/ |
2.35 |
/ |
/ |
18.8 |
11.5 |
0.3 |
5000 |
|
NEXT PAGE
|
