CONTACTS
BUTTON TERMINALS

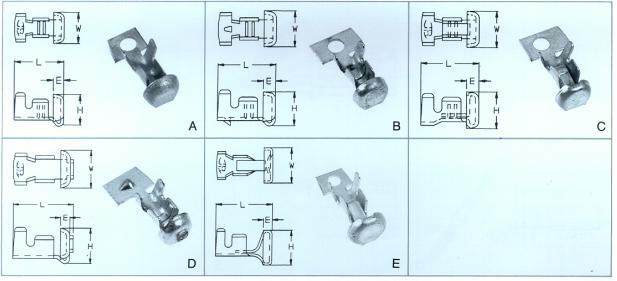

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
903001T |
BS |
0
2 |
0.5-1.25 |
/ |
/ |
4.5 |
7.2 |
1.5 |
0.4 |
10000 |
|
| B |
903004T |
BS |
0 |
0.5-1.25 |
/ |
/ |
4.5 |
7.2 |
1.5 |
0.4 |
10000 |
|
| C |
903011T |
BS |
0
S |
0.5-1.25 |
/ |
/ |
4.5 |
7.2 |
1.4 |
0.4 |
6000 |
|
| D |
903101T |
BS |
0 |
0.3-0.8 |
/ |
/ |
4.5 |
7.2 |
1.5 |
0.4 |
10000 |
|
| E |
903201T |
BS |
0
2 |
0.85-1.25 |
/ |
/ |
6.2 |
9.7 |
1.5 |
0.4 |
5000 |
|
