118
MIC SERIES CONNECTORS

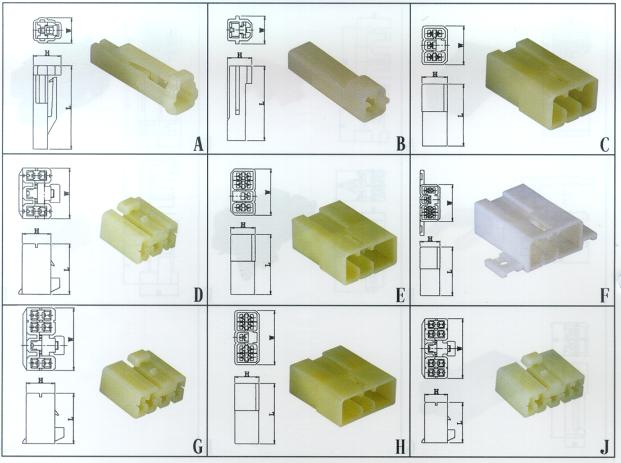

FIG
|
PART NO.
|
Dimension
|
APPLICABLE
TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFMIC-1MH |
36.30 |
12.00 |
11.00 |
917501T |
NL66(H) |
NATURE
BLACK |
100 |
|
| B |
SFMIC-1FH |
22.70 |
6.60 |
7.60 |
917401T |
NL66(H) |
NATURE
BLACK |
100 |
|
| C |
SFMIC-5MH |
36.80 |
15.00 |
23.80 |
917501T |
NL66(H) |
NATURE
BLACK |
100 |
|
| D |
SFMIC-5FH |
22.00 |
11.80 |
20.00 |
917401T |
NL66(H) |
NATURE
BLACK |
100 |
|
| E |
SFMIC-7MH |
36.80 |
15.00 |
28.30 |
917501T |
NL66(H) |
NATURE
BLACK |
100 |
|
| F |
SFMIC-7MTH |
36.80 |
15.00 |
28.30 |
917501T |
PBT |
WHITE |
100 |
|
| G |
SFMIC-7FH |
22.00 |
11.80 |
25.10 |
917401T |
NL66(H) |
NATURE
BLACK |
100 |
|
| H |
SFMIC-9MH |
36.80 |
15.00 |
33.40 |
917501T |
NL66(H) |
NATURE
BLACK |
100 |
|
| J |
SFMIC-9FH |
22.00 |
11.80 |
30.10 |
917401T |
NL66(H) |
NATURE
BLACK |
100 |
|
