090 SERIES
CONNECTORS (SEMI-LOCKING TYPE)(

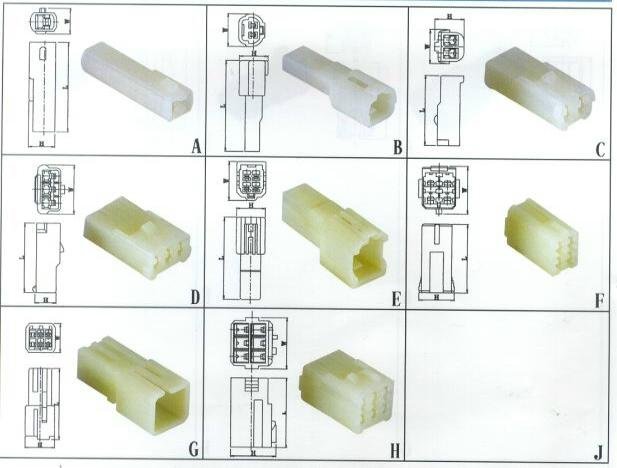

FIG
|
PART NO.
|
Dimension
|
APPLICABLE
TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFSL-1BSLH |
20.30 |
5.90 |
5.00 |
917102T |
NL66(H) |
NATURE |
500 |
|
| B |
SFSL-2ASLH |
35.80 |
10.50 |
12.50 |
917102T |
NL66(H) |
NATURE |
100 |
|
| C |
SFSL-2BSLH |
20.90 |
10.20 |
5.00 |
917102T |
NL66(H) |
NATURE
BLACK |
100 |
|
| D |
SFSL-3BSLH |
20.90 |
14.40 |
9.10 |
917102T |
NL66(H) |
NATURE |
100 |
|
| E |
SFSL-4ASLH |
35.80 |
12.50 |
17.10 |
917102T |
NL66(H) |
NATURE |
100 |
|
| F |
SFSL-4BSLH |
20.90 |
10.60 |
12.00 |
917102T |
NL66(H) |
NATURE |
100 |
|
| G |
SFSL-6ASLH |
35.80 |
16.10 |
15.30 |
917102T |
NL66(H) |
NATURE |
100 |
|
| H |
SFSL-6BSLH |
20.90 |
13.60 |
13.10 |
917102T |
NL66(H) |
NATURE |
100 |
|
