250 TYPES
SERIES TERMINALS

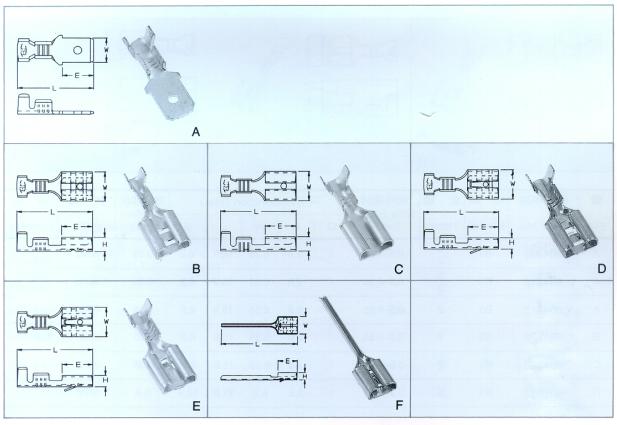

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
905402T |
BS |
0
2 |
0.85-1.25 |
/ |
/ |
6.35 |
19.6 |
7.9 |
0.8 |
5000 |
CSA |
| B |
904402T |
BS |
0
2 |
0.85-2.0 |
/ |
3.15 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
CSA
UL
TAB=0.8 |
| B |
904403T |
BS |
0
2 |
0.3-0.5 |
/ |
3.15 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
CSA
UL
TAB=0.8 |
| C |
904404T |
BS |
0
2 |
0.85-2.0 |
/ |
3.0 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
TAB=0.8 |
| D |
904405T |
BS |
0
2 |
0.85-2.0 |
/ |
3.1 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
TAB=0.8 |
| E |
904406T |
BS |
0
2 |
0.85-2.0 |
/ |
3.1 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
TAB=0.8 |
| B |
904409T |
BS |
0
2 |
0.85-2.0 |
/ |
3.0 |
7.6 |
19.3 |
7.8 |
0.4 |
5000 |
TAB=0.6 |
| F |
*904410T |
BL |
S |
/ |
/ |
3.2 |
7.5 |
31.0 |
7.8 |
0.35 |
2000 |
TAB=0.8 |
