250 TYPES SERIES TERMINALS

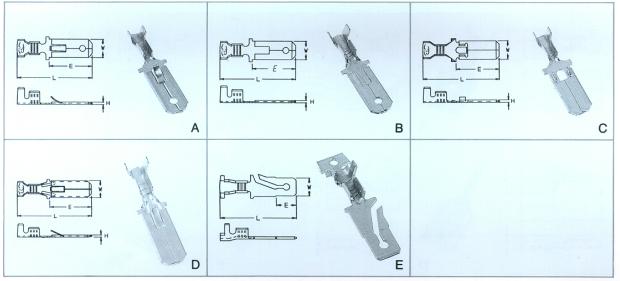

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 905501T BS 0
S		 2.0-3.0 / 0.8 6.0 24.5 14.0 0.4 4000 　
A 905502T BS 0
S		 0.85-1.25 / 0.8 6.0 24.5 14.0 0.4 5000 　
A 905503T BS 0
S		 0.3-0.5 / 0.8 6.0 24.5 14.0 0.4 5000 　
B 905504T BS 0 0.85-1.25 / 0.8 6.0 24.5 14.0 0.4 5000 　
C 905511T BS 0
2S		 2.0-3.0 / 0.8 6.0 24.5 13.8 0.4 4000 　
C 905512T BS 0
S		 0.85-1.25 / 0.8 6.0 24.5 13.8 0.4 5000 　
C 905513T BS 0
2S		 0.3-0.5 / 0.8 6.0 24.5 13.8 0.4 5000 　
D 905601T BS 0
2		 0.85-1.25 / 0.8 6.35 28.0 15.8 0.4 4000 　
E 905901T BS 0
2		 0.85-1.25 / / 6.35 26.6 7.0 0.8 2000 　

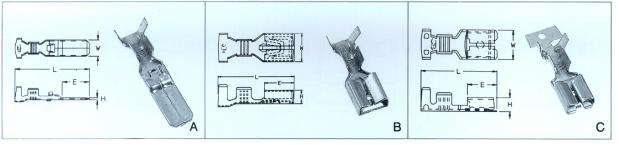

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 916324T BS S 2.0-3.0 / 3.7 6.3 28.3 10.3 0.4 3000 WATER-PROOF
B 916424T BS S 2.0-3.0 / 3.7 7.7 20.5 8.0 0.3 4000 WATER-PROOF
B 916427T BS S 0.85-1.25 / 3.7 7.7 20.5 8.0 0.3 4000 WATER-PROOF
C 916601T KS S 2.0-3.0 / 3.7 7.8 19.9 8.0 0.3
0.5		 2000 0.3-CAC92
0.5KFC
C 916602T KS S 1.25-2.0 / 3.7 7.8 19.9 8.0 0.3
0.5		 2000 0.3-CAC92
0.5KFC
