250 TYPES
SERIES TERMINALS

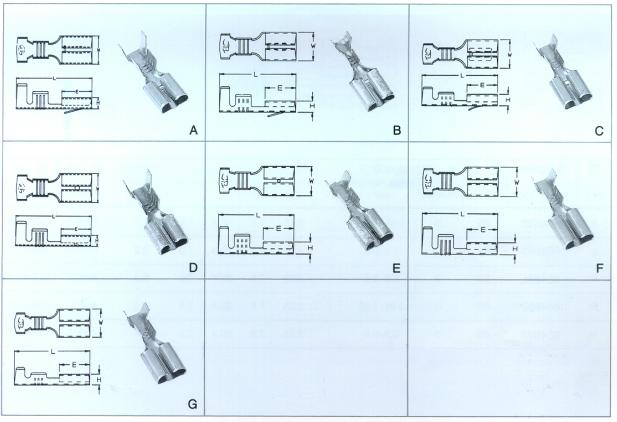

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
904501T |
BS |
0
S |
2.0-3.0 |
/ |
2.9 |
7.5 |
19.4 |
7.8 |
0.3 |
4000 |
TAB=0.8 |
| B |
904502T |
BS |
0
S |
0.85-1.25 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| B |
904503T |
BS |
0
S |
0.3-0.85 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| C |
904512T |
BS |
0 |
0.85-1.25 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| D |
904521T |
BS |
0
S |
2.0-3.0 |
/ |
3.1 |
7.5 |
19.4 |
7.8 |
0.4 |
4000 |
TAB=0.8 |
| E |
901522T |
BS |
0
S |
0.85-1.25 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| F |
904531T |
BS |
0
S |
2.0-3.0 |
/ |
2.9 |
7.5 |
19.4 |
7.8 |
0.3 |
4000 |
TAB=0.8 |
| G |
904532T |
BS |
0
S |
0.85-1.25 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| G |
904533T |
BS |
0
S |
0.3-0.85 |
/ |
2.9 |
7.5 |
19.3 |
7.8 |
0.3 |
6000 |
TAB=0.8 |
| A |
904541T |
BS |
S |
2.0-3.0 |
/ |
2.9 |
7.5 |
19.4 |
7.8 |
0.3 |
4000 |
TAB=0.6 |
