250 TYPES SERIES TERMINALS

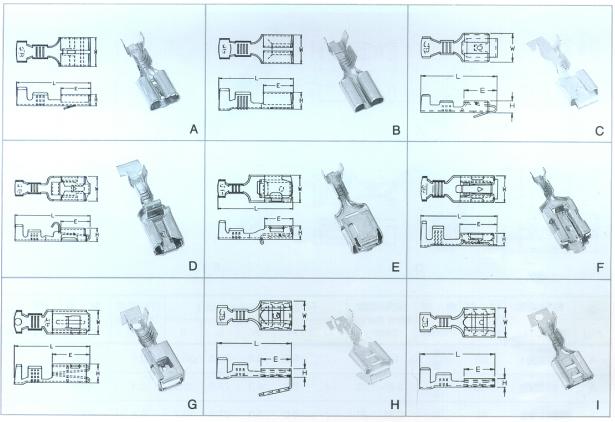

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 904542T BS S 0.85-1.25 / 2.9 7.5 19.3 7.8 0.3 6000 TAB=0.8
B 904552T BS 0 0.85-2.0 / 2.9 7.5 19.3 7.8 0.3 6000 TAB=0.8
C 904901T BS 0
2		 0.85-1.25 / 3.3 7.7 20.0 8.7 0.4 3000 TAB=0.8
D 905001T BS 0
S		 0.85-1.25 / 4.05 7.5 23.0 9.3 0.4 2000 UL
TAB=0.8
E 905022T BS S 0.3-0.85 / 3.8 7.6 21.0 8.0 0.4 4000 　
F 905051T BS 0
S		 2.0-3.0 / 3.65 7.6 20.5 10.5 0.4 3000 　
F 905052T BS 0
S		 0.85-1.25 / 3.65 7.6 20.5 10.5 0.4 5000 　
F 905053T BS 0
S		 0.3-0.85 　 3.65 7.6 20.5 10.5 0.4 5000 　
G 905061T BS S 2.0-3.0 / 5.45 7.0 21.4 9.6 0.4 2000 　
H 905801T BS 0
2		 0.85-1.25 / 2.25 7.6 19.6 8.0 0.4 2000 UL
TAB=0.8
I 905812T BS 0 0.85-1.25 / 2.25 7.6 19.6 8.0 0.4 3000 TAB=0.8
