250 TYPES SERIES TERMINALS

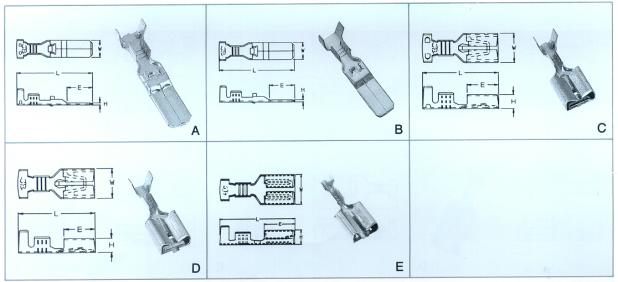

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 916301T BS 0
S		 1.25-2.0 / 0.8 6.3 27.5 10.3 0.4 3000 　
A 916302T BS 0
S		 .085-1.25 / 0.8 6.3 27.5 10.3 0.4 4000 　
A 916302T KS S .085-1.25 / 0.8 6.3 27.5 10.3 0.4 4000 　
A 916303T BS 0
S		 0.3-0.85 / 0.8 6.3 27.5 10.3 0.4 4000 　
A 916303T KS S 0.3-0.85 / 0.8 6.3 27.5 10.3 0.4 4000 　
B 916321T BS 0
S		 1.25-2.0 / 0.8 6.3 27.5 10.3 0.4 3000 　
B 916323T BS 0
S		 0.85-1.25 / 0.8 6.3 27.5 10.3 0.4 4000 　
C 916401T BS 0 1.25-2.0 / 3.7 7.7 19.5 8.0 0.3 4000 TAB=0.8
C 916402T BS 0 0.85-1.25 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
C 916403T BS 0
S		 0.3-0.85 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
C 916412T BS 0 0.85-1.25 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
D 916421T BS 0
S		 1.25-2.0 / 3.7 7.7 19.5 8.0 0.3 4000 TAB=0.8
D 916423T BS 0
S		 0.3-0.85 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
E 916442T BS S 0.85-1.25 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
E 916443T BS S 0.3-0.5 / 3.7 7.7 19.5 8.0 0.3 5000 TAB=0.8
