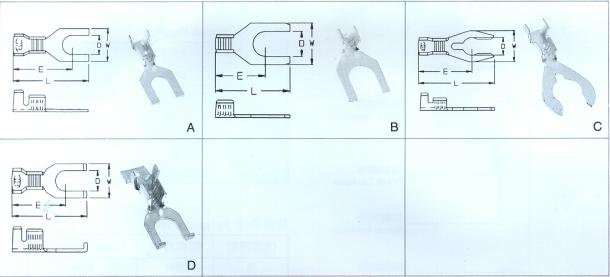

SPADE TONGUE TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
901201T |
BS |
0
2 |
0.85-1.25 |
4.3 |
/ |
7.3 |
17.2 |
12.7 |
0.5 |
7000 |
CAS UL |
| A |
901202T |
BS |
0
2 |
0.5-1.25 |
4.3 |
/ |
7.2 |
16.7 |
12.6 |
0.5 |
7000 |
CAS UL |
| A |
901203T |
BS |
0
2 |
0.85-1.25 |
3.6 |
/ |
7.6 |
17.2 |
12.3 |
0.5 |
7000 |
CAS UL |
| A |
901204T |
BS |
3 |
0.5-1.25 |
4.3 |
/ |
7.2 |
16.7 |
12.6 |
0.4 |
7000 |
|
| B |
901205T |
BS |
2 |
0.5-1.25 |
4.3 |
/ |
7.2 |
12.8 |
8.9 |
0.5 |
7000 |
UL |
| A |
901206T |
BS |
0 |
0.85-1.25 |
3.6 |
/ |
6.6 |
17.2 |
12.3 |
0.5 |
7000 |
|
| C |
901501T |
BS |
0
2
3 |
0.85-1.25 |
4.4 |
/ |
8.0 |
19.0 |
16.0 |
0.6 |
6000 |
|
| C |
901502T |
BS |
0
2 |
0.85-1.25 |
5.4 |
/ |
10.0 |
22.6 |
17.0 |
0.8 |
4000 |
|
| C |
901504T |
BS |
0
2
3 |
0.85-1.25 |
6.5 |
/ |
12.0 |
24.5 |
18.4 |
0.8 |
3000 |
UL |
| D |
901801T |
BS |
2 |
2.0-3.3 |
5.2 |
/ |
8.6 |
18.8 |
13.5 |
0.8 |
2500 |
|
NEXT PAGE
|
