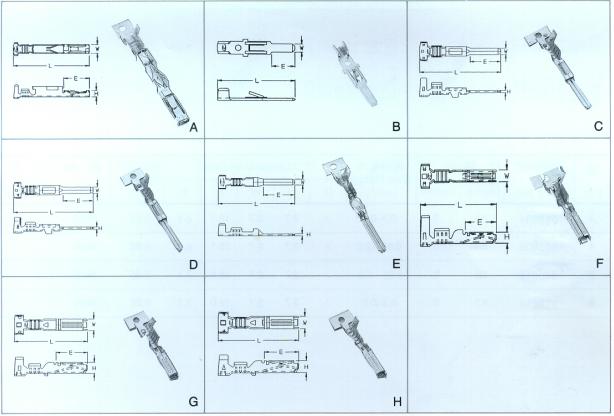

070 TYPES
SERIES TABS TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
917052T |
PS |
S |
0.5-1.25 |
/ |
2.3 |
3.2 |
27.2 |
9.0 |
0.3 |
3000 |
|
| B |
917305T |
BS |
S |
0.2-0.5 |
/ |
/ |
1.8 |
16.5 |
5.5 |
0.5 |
10000 |
|
| C |
918502T |
BS |
S |
0.85-1.25 |
/ |
0.6 |
1.7 |
20.9 |
7.6 |
0.3 |
3000 |
|
| D |
918503T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
1.7 |
20.9 |
7.6 |
0.3 |
4000 |
|
| E |
918504T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
1.8 |
22.8 |
9.3 |
0.3 |
4000 |
|
| E |
918505T |
BS |
S |
0.85-2.0 |
/ |
0.6 |
1.8 |
22.8 |
9.3 |
0.3 |
3000 |
|
| F |
918601T |
KS |
S |
1.25-2.0 |
/ |
2.5 |
2.6 |
16.5 |
6.9 |
0.3 |
1500 |
|
| G |
918602T |
BS |
5
S |
0.85-1.25 |
/ |
2.5 |
2.6 |
16.2 |
6.9 |
0.3 |
3000 |
|
| H |
918603T |
BS |
S |
0.3-0.5 |
/ |
2.5 |
2.6 |
16.2 |
6.9 |
0.3 |
3000 |
|
