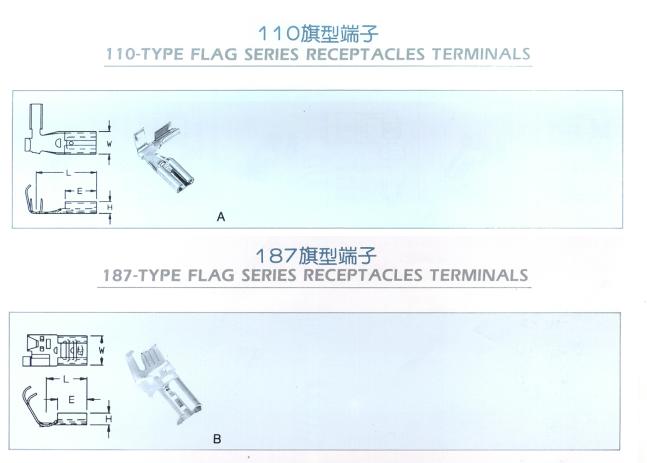

TYPES FLAG SERIES RECEPTACLES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
*910401T |
PS |
S |
0.3-0.85. |
/ |
2.0 |
3.76 |
9.7 |
5.08 |
0.25 |
7000 |
TAB=0.8 |
| B |
910901T |
BS |
0
2 |
0.3-0.85. |
/ |
2.35 |
5.6 |
10.0 |
6.4 |
0.35 |
2500 |
CSA
UL
TAB=0.5 |
| B |
910911T |
BS |
0
2 |
0.3-0.85. |
/ |
2.6 |
5.6 |
10.0 |
6.4 |
0.35 |
2500 |
UL
TAB=0.8 |

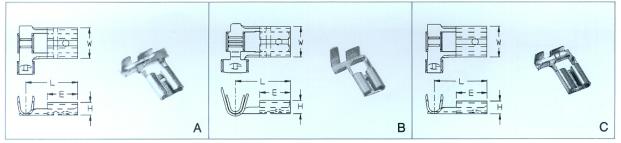

205-TYPE
FLAG SERIES RECEPTACLES TERMINAL
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
910301T |
BS |
0
2 |
0.5-0.85 |
/ |
2.6 |
6.3 |
10.6 |
6.2 |
0.4 |
5000 |
CSA
UL
TAB=0.5 |
| A |
910311T |
BS |
0
2 |
0.5-0.85 |
/ |
2.8 |
6.3 |
10.6 |
6.2 |
0.4 |
5000 |
TAB=0.8 |
| A |
910312T |
BS |
0
2 |
0.5-0.85 |
/ |
2.7 |
6.3 |
10.6 |
6.2 |
0.4 |
5000 |
TAB=0.6 |
| B |
*910321T |
BS |
2 |
0.85-2.0 |
/ |
2.7 |
6.3 |
11.1 |
6.2 |
0.4 |
4000 |
TAB=0.6 |
| C |
910322T |
BS |
0 |
0.5-0.85 |
/ |
2.7 |
6.3 |
10.6 |
6.2 |
0.4 |
5000 |
TAB=0.65 |
| A |
910342T |
BS |
S |
0.5-0.85 |
/ |
2.7 |
6.3 |
10.6 |
6.2 |
0.4 |
5000 |
TAB=0.6 |
