250-TYPE
FLAG SERIES RECEPTACLES TERMINAL

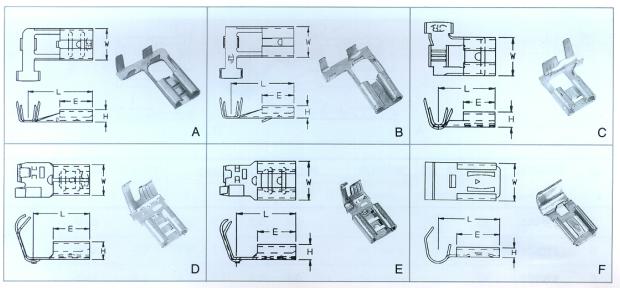

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
910201T |
BS |
0
2 |
1.25-2.0 |
/ |
3.0 |
7.6 |
15.3 |
7.8 |
0.4 |
2500 |
CSA UL |
| B |
910202T |
BS |
0
2 |
1.25-2.0 |
/ |
3.0 |
7.6 |
15.3 |
7.8 |
0.4 |
2500 |
TAB=0.8 |
| B |
910252T |
BS |
0 |
1.25-2.0 |
/ |
3.0 |
7.6 |
15.3 |
7.8 |
0.4 |
2500 |
TAB=0.65 |
| C |
910204T |
BS |
0
2 |
1.25-2.0 |
/ |
3.1 |
7.6 |
11.0 |
6.1 |
0.4 |
2500 |
|
| D |
910801T |
BS |
0
2 |
0.85-2.0 |
/ |
3.15 |
8.0 |
12.0 |
7.8 |
0.45 |
2000 |
CSA
UL
TAB=0.8 |
| D |
910852T |
BS |
2 |
0.85-2.0 |
/ |
3.15 |
8.0 |
12.0 |
7.8 |
0.45 |
2000 |
TAB=0.8 |
| E |
910803T |
BS |
0
2 |
0.3-0.5 |
/ |
3.15 |
8.0 |
12.0 |
7.8 |
0.45 |
2500 |
TAB=0.8 |
| F |
910899T |
BS |
S |
2.0-3.0 |
/ |
2.0 |
7.7 |
13.4 |
8.8 |
0.5 |
3000 |
TAB=0.8 |
