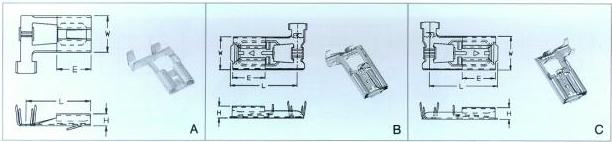

312-TYPE
FLAG SERIES RECEPTACLES TERMINAL
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
910001T |
BS |
0
2 |
1.25-2.5 |
/ |
3.0 |
9.2 |
15.9 |
8.6 |
0.4 |
2500 |
|
| B |
910601T |
BS |
S |
0.85-1.25 |
/ |
3.1 |
8.9 |
17.5 |
9.1 |
0.3 |
1500 |
|
| C |
910602T |
BS |
S |
0.85-1.25 |
/ |
3.1 |
8.9 |
17.5 |
9.1 |
0.3 |
1500 |
|
375-TYPE
FLAG 110-TYPE 090-TYPE TERMINAL
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
T375M(95) |
KL |
2 |
3.0-8.0 |
/ |
1.3 |
9.5 |
40.3 |
16.5 |
0.6 |
1000 |
|
| B |
T375M(94) |
KS |
2 |
3.0-8.0 |
/ |
4.4 |
11.3 |
28.8 |
15.5 |
0.6 |
1000 |
|
| D |
T1108J |
BS |
S |
0.3-1.25 |
/ |
0.8 |
2.8 |
22.4 |
12.4 |
0.4 |
7500 |
|
| E |
T090J |
BS |
S |
0.3-0.5 |
/ |
0.5 |
2.2 |
18.2 |
5.6 |
0.5 |
10000 |
|
