TERMINALS
FOR LAMP SEAT

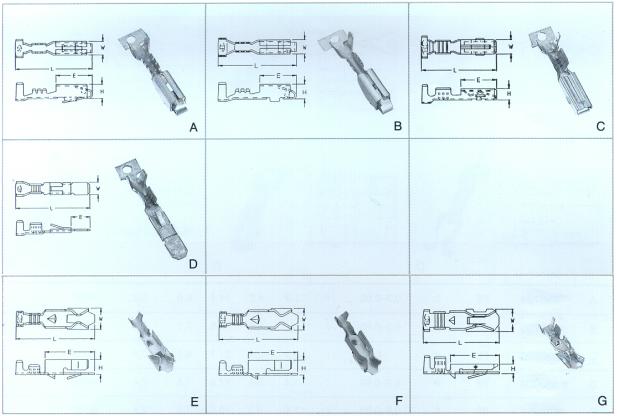

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
917601T |
BS |
S |
0.3-0.85 |
/ |
3.9 |
3.8 |
20.6 |
9.6 |
0.4 |
3000 |
|
| B |
917652T |
BS |
S |
0.85-1.25 |
/ |
3.9 |
3.8 |
20.6 |
9.6 |
0.4 |
3000 |
|
| C |
917805T |
BS |
S |
0.3-0.85 |
/ |
3.0 |
3.75 |
19.4 |
9.1 |
0.3 |
3000 |
|
| D |
918101T |
BS |
S |
0.5-1.25 |
/ |
/ |
3.8 |
22.3 |
5.7 |
0.5 |
4000 |
|
| E |
930701T |
BS |
0 |
0.3-0.85 |
/ |
3.4 |
5.0 |
17.8 |
10.9 |
0.4 |
8000 |
|
| F |
930702T |
BS |
0 |
0.3-0.85 |
/ |
3.4 |
5.0 |
17.8 |
10.9 |
0.4 |
8000 |
|
| G |
930703T |
PS |
0 |
0.5-1.25 |
/ |
1.7 |
4.0 |
13.3 |
8.5 |
0.3 |
10000 |
|
