DESCRIPTI0NS ON
TERMINALS
1.

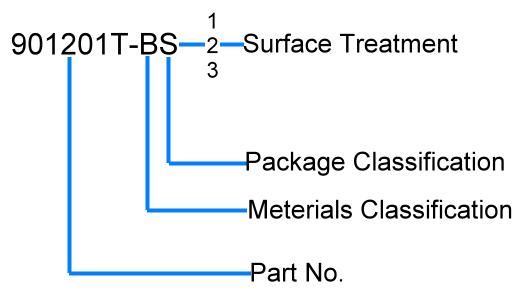

Description on products numbering
2.
"CSA" "UL" Showing in Remark Column Indicate "CSA"
"UL" Approved.
3.
Mark "*" Indicate The Product Belong To Customer Absolutely Purchase To Be
Permitted
| Meterials
Classification |
| Description |
Metal |
| B |
Brass |
| P |
Phosphor bronze |
| C |
Copper |
| K |
Copper alloys |
| F |
Fe |
| S |
Stainless or Steel |
| Package
Classification |
| Description |
Package Classification |
| S |
Serial |
| L |
Loose |
| Surface
Treatment |
| Description |
Surface Treatment |
| 0 |
None |
| 1 |
Chemical Grinding |
| 2 |
Tin Plating |
| 3 |
Nickel Plating |
| 4 |
Silver Plating |
| 5 |
Gold Plating |
| 6 |
Zinc Plating |
| S |
Pre-Tin |
| N |
Pre-Nickel |
| G |
Pre-Gold |
| A.W.G. |
30 |
28 |
26 |
24 |
22 |
20 |
18 |
16 |
14 |
12 |
10 |
| Section
Area mm2 |
0.05 |
0.08 |
0.13 |
0.2 |
0.33 |
0.52 |
0.82 |
1.3 |
2.08 |
3.3 |
5.2 |
| Dia
of Insulation |
A |
/ |
/ |
/ |
/ |
Φ1.80 |
Φ2.20 |
Φ2.40 |
Φ2.70 |
Φ3.15 |
Φ3.85 |
Φ4.65 |
| AVS |
/ |
/ |
/ |
/ |
/ |
Φ2.05 |
Φ2.25 |
Φ2.55 |
Φ2.90 |
Φ3.70 |
Φ4.50 |
| AVSS |
/ |
/ |
/ |
/ |
Φ1.45 |
Φ1.65 |
Φ1.85 |
Φ2.15 |
Φ2.70 |
/ |
/ |
