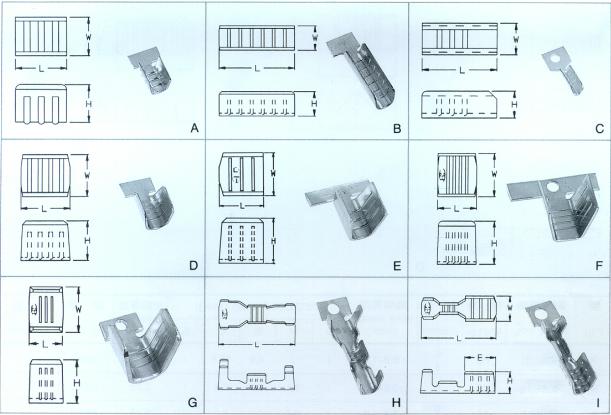

SPLICES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
908001T |
BS |
0
2 |
1.0-1.5 |
/ |
3.7 |
3.8 |
5.0 |
/ |
0.4 |
15000 |
|
| B |
908002T |
BS |
0 |
0.8-2.0 |
/ |
3.6 |
3.6 |
11.0 |
/ |
0.4 |
7000 |
|
| C |
908004T |
BS |
0
2 |
0.2-0.3 |
/ |
1.7 |
2.0 |
4.7 |
/ |
0.3 |
15000 |
|
| D |
908101T |
BS |
0
2
S |
2.0-3.3 |
/ |
4.9 |
5.2 |
6.0 |
/ |
0.4 |
7000 |
|
| E |
908201T |
BS |
0
2 |
5.0-9.0 |
/ |
7.2 |
6.7 |
7.2 |
/ |
0.6 |
3500 |
|
| F |
908401T |
BS |
0
2 |
9.0-14.0 |
/ |
8.6 |
8.2 |
7.6 |
/ |
0.5 |
2500 |
|
| G |
908411T |
BS |
0 |
19-25 |
/ |
11.9 |
12.0 |
8.8 |
/ |
1.2 |
1000 |
|
| G |
908412T |
BS |
0 |
14-19 |
/ |
10.5 |
10.0 |
7.4 |
/ |
1 |
1000 |
|
| H |
908501T |
BS |
0 |
0.5-1.5 |
/ |
/ |
/ |
14.1 |
/ |
0.3 |
5000 |
|
| I |
908502T |
BS |
0
2 |
0.2-0.3 |
/ |
3.6 |
4.2 |
12.1 |
5.0 |
0.4 |
6000 |
|
