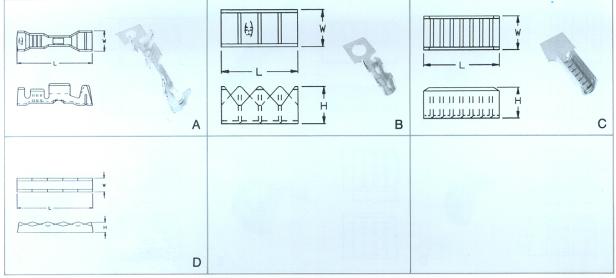

SPLICES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
908503T |
BS |
0
2 |
0.8-1.3 |
/ |
/ |
4.9 |
17.8 |
/ |
0.4 |
4000 |
|
| B |
908601T |
BS |
0 |
0.5-1.5 |
/ |
3.1 |
2.4 |
6.3 |
/ |
0.25 |
15000 |
|
| B |
908602T |
BS |
0
2 |
0.3-1.0 |
/ |
2.7 |
2.2 |
6.3 |
/ |
0.25 |
15000 |
|
| C |
*908702T |
BS |
0 |
0.5-1.3 |
/ |
2.8 |
2.9 |
6.7 |
/ |
0.3 |
15000 |
|
| D |
909201T |
BS |
N |
0.15-0.3 |
/ |
1.0 |
1.3 |
7.0 |
/ |
0.25 |
30000 |
|
060 TYPES

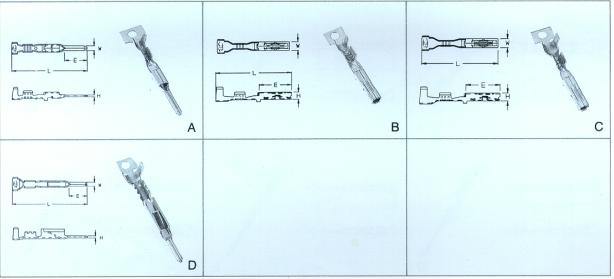

SERIES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE |
Dimension |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
918302T |
BS |
S |
0.5-0.85 |
/ |
0.6 |
1.5 |
23.0 |
7.0 |
0.3 |
4000 |
|
| A |
918303T |
BS |
S |
03.-0.5 |
/ |
0.6 |
1.5 |
23.0 |
7.0 |
0.3 |
4000 |
|
| B |
918402T |
KS |
S |
0.5-0.85 |
/ |
2.1 |
2.5 |
19.2 |
8.9 |
0.25 |
4000 |
|
| B |
918403T |
KS |
S |
0.3-0.5 |
/ |
2.1 |
2.5 |
19.2 |
8.9 |
0.25 |
4000 |
|
| C |
918404T |
KS |
S |
0.5-0.85 |
/ |
2.1 |
2.5 |
21.0 |
8.9 |
0.25 |
4000 |
WATER-PROOF |
| D |
918341T |
BS |
0 |
0.5-1.25 |
/ |
0.8 |
1.5 |
26.7 |
6.6 |
0.4 |
3000 |
|
| D |
*918351T |
BS |
0
S |
0.5-0.85 |
/ |
0.8 |
1.5 |
27.5 |
6.6 |
0.4 |
3000 |
|
| D |
*918351T |
PS |
0 |
0.5-0.85 |
/ |
0.8 |
1.5 |
27.5 |
6.6 |
0.4 |
3000 |
|
NEXT PAGE
|
