4Φ

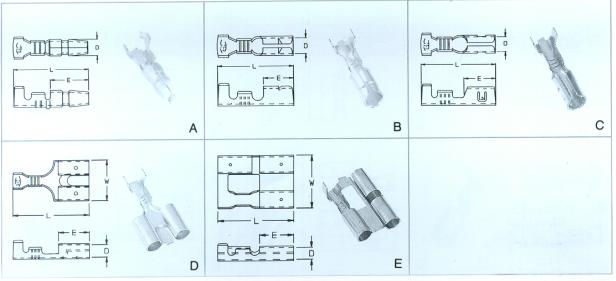

SHUR PLUG TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
906102T |
BS |
0
2 |
0.85-1.25 |
3.5 |
/ |
/ |
16.5 |
8.2 |
0.4 |
8000 |
UL |
| A |
906103T |
BS |
0
2 |
0.3-0.5 |
3.5 |
/ |
/ |
16.5 |
8.2 |
0.4 |
8000 |
|
| A |
906131T |
BS |
0
2 |
0.85-1.25 |
3.5 |
/ |
/ |
13.4 |
7.7 |
0.4 |
10000 |
|
| B |
906002T |
BS |
0
2 |
0.85-1.25 |
(3.5) |
/ |
/ |
16.5 |
6.5 |
0.4 |
8000 |
UL |
| C |
906012T |
BS |
0
2 |
0.85-1.25 |
(3.5) |
/ |
/ |
17.5 |
6.5 |
0.4 |
8000 |
UL |
| C |
906013T |
BS |
0
2 |
0.3-0.5 |
(3.5) |
/ |
/ |
17.5 |
6.5 |
0.4 |
8000 |
|
| D |
907201T |
BS |
0
2 |
0.85-1.25 |
(3.5) |
/ |
11.0 |
19.6 |
8.0 |
0.35 |
4000 |
|
| D |
907202T |
BS |
0
2 |
0.85-1.25 |
(3.5) |
/ |
11.0 |
19.6 |
8.0 |
0.3 |
4000 |
|
| D |
907203T |
BS |
0 |
0.3-0.5 |
(3.5) |
/ |
11.0 |
19.6 |
8.0 |
0.3 |
4000 |
|
| E |
907211T |
BS |
0
2 |
0.5-0.85 |
(3.5) |
/ |
11.4 |
16.2 |
7.1 |
0.3 |
5000 |
|
