312 TYPES SERIES TERMINALS

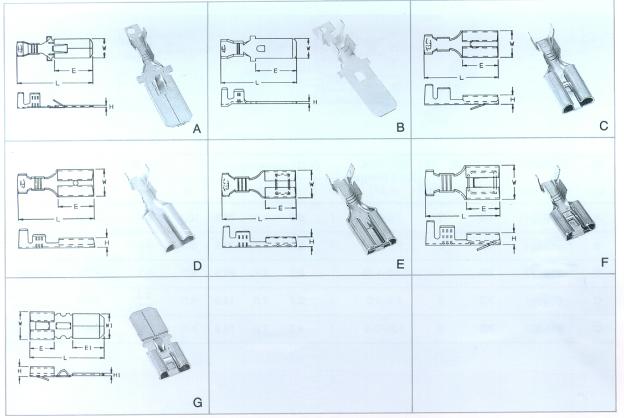

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 905701T BS 0
2		 3.0-5.0 / 0.8 7.7 30.2 16.0 0.4 2000 　
A 905702T BS 0
2		 0.85-1.25 / 0.8 7.7 30.2 16.0 0.4 2500 　
B 905711T BS 0
2		 3.0-5.0 / / 7.8 29.7 16.0 0.8 1500 　
C 904700T BS 0
S		 3.0-5.0 / 3.2 9.0 25.0 12.0 0.4 2500 TAB=0.8
C 904701T BS 0
S		 1.25-2.0 / 3.2 9.0 25.0 12.0 0.4 2500 TAB=0.8
D 904731T BS 0
2		 1.25-2.0 / 3.2 9.0 25.0 12.0 0.4 2500 TAB=0.8
E 904752T BS 0
2		 3.0-5.0 / 3.2 9.0 24.2 10.0 0.4 2500 TAB=0.8
F 904800T BS 0 3.0-5.0 / 3.2 9.0 19.7 8.7 0.4 3000 TAB=0.8
F 904801T BS 0
S		 0.85-1.25 / 3.2 9.0 19.7 8.7 0.4 5000 TAB=0.8
G 905821T BL 0 / / H1=0.8
H=3.2		 W1=7.9
W=9.0		 24.2 E1=10
E=8.0		 0.4 500 　

NEXT PAGE
