TERMINALS
FOR RECEPTACLES
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |

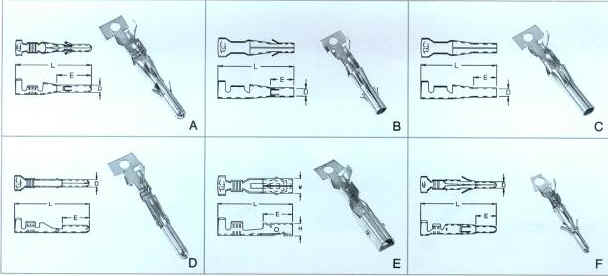

| D |
H |
W |
L |
E |
| A |
920101T |
BS |
S |
0.5-1.25 |
2.36 |
/ |
/ |
24.0 |
11.0 |
0.3 |
4000 |
|
| B |
920201T |
BS |
S |
0.5-1.25 |
(2.36) |
/ |
/ |
19.5 |
6.6 |
0.25 |
4000 |
|
| C |
920211T |
BS |
S |
0.5-1.25 |
(2.36) |
/ |
/ |
19.5 |
6.6 |
0.25 |
4000 |
|
| D |
920301T |
BS |
S |
0.85-1.25 |
2.36 |
/ |
/ |
23.0 |
8.0 |
0.3 |
4000 |
|
| E |
920401T |
BS |
0
S |
0.85-1.25 |
(2.36) |
3.2 |
3.8 |
19.0 |
7.5 |
0.3 |
4000 |
|
| F |
920501T |
BS |
S |
0.3-0.85 |
1.55 |
/ |
/ |
17.0 |
4.5 |
0.2 |
4000 |
|

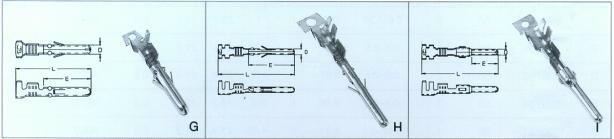

| G |
920511T |
BS |
S |
0.5-1.25 |
2.35 |
/ |
/ |
19.4 |
12.1 |
0.3 |
3000 |
|
| H |
920515T |
BS |
S |
0.5-1.25 |
2.0 |
/ |
/ |
26.5 |
14.3 |
0.3 |
3000 |
|
| I |
920521T |
BS |
S |
0.85-2.0 |
2.0 |
/ |
/ |
25.0 |
9.5 |
0.3 |
3000 |
|
