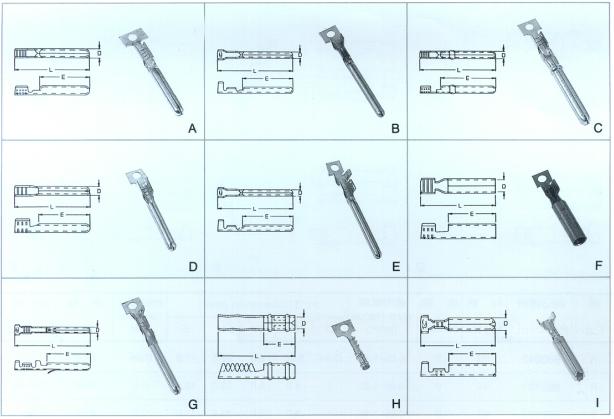

TERMINALS
FOR RECEPTACLES
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
927501T |
BS |
0 |
0.3-0.85 |
2.76 |
/ |
/ |
22.3 |
14.7 |
0.4 |
7000 |
|
| B |
927502T |
BS |
0
N |
0.2-0.3 |
2.1 |
/ |
/ |
24.6 |
16.7 |
0.4 |
6000 |
|
| C |
927503T |
BS |
N |
0.3-0.8 |
3.0 |
/ |
/ |
27.9 |
21.0 |
0.35 |
7000 |
|
| D |
927504T |
BS |
0
S |
0.85-1.25 |
2.36 |
/ |
/ |
19.9 |
13.4 |
0.4 |
5000 |
|
| E |
927505T |
BS |
N |
0.5-1.25 |
2.1 |
/ |
/ |
24.4 |
16.6 |
0.4 |
6000 |
|
| F |
*927602T |
PS |
0 |
0.8-2.0 |
(2.83) |
/ |
/ |
17.4 |
11.0 |
0.3 |
7000 |
|
| G |
927901T |
BS |
S |
0.3-0.8 |
2.35 |
/ |
/ |
24.7 |
14.1 |
0.3 |
5000 |
|
| H |
928001T |
PS |
S |
0.2-0.5 |
(1.47) |
/ |
/ |
9.6 |
3.9 |
0.2 |
15000 |
|
| I |
930101T |
BS |
1
2 |
0.2-0.3 |
3.16 |
/ |
/ |
18.4 |
11.5 |
0.4 |
10000 |
|
