118 TYPES SERIES TERMINALS

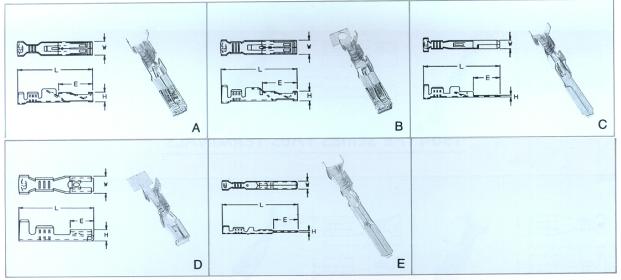

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 916801T PS S 2.0-3.0 / 2.8 4.0 22.0 10.3 0.3 6000 　
B 916802T BS S 0.85-1.25 / 2.8 4.0 21.1 9.7 0.3 4000 　
B 916802T PS S 0.85-1.25 / 2.8 4.0 21.1 9.7 0.3 4000 　
A 916803T BS S 0.5-0.85 / 2.8 4.0 22.0 10.3 0.3 7000 　
A 916803T PS S 0.5-0.85 / 2.8 4.0 22.0 10.3 0.3 7000 　
C 916901T BS S 2.0-3.0 / 0.6 3.0 26.6 9.4 0.3 6000 　
C 916902T BS S 0.85-1.25 / 0.6 3.0 25.0 9.4 0.3 7000 　
C 916903T BS S 0.5-0.85 / 0.6 3.0 26.6 9.4 0.3 7000 　
D 917401T BS S 0.85-1.25 / 2.7 4.0 17.4 5.5 0.4 4000 　
D 917402T BS S 0.3-0.5 / 2.7 4.0 17.4 5.5 0.4 4000 　
E 917501T BS S 0.85-1.25 / 0.6 3.0 27.8 8.5 0.3 7000 　
E 917502T BS S 0.3-0.5 / 0.6 3.0 27.8 8.5 0.3 7000 　
