205 TYPES
SERIES TERMINALS

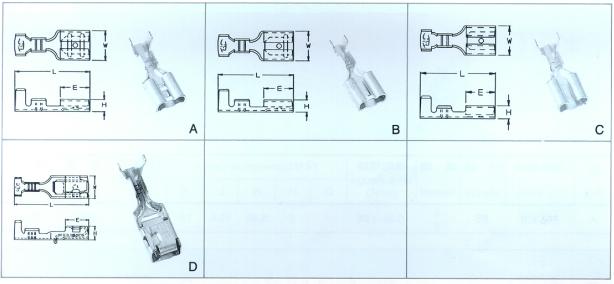

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
904301T |
BS |
0
2 |
0.5-1.25 |
/ |
2.6 |
6.4 |
15.9 |
6.2 |
0.35 |
8000 |
CSA
UL
TAB=0.5 |
| A |
904312T |
BS |
0
2 |
0.3-0.85 |
/ |
2.6 |
6.4 |
15.9 |
6.2 |
0.35 |
8000 |
CSA
UL
TAB=0.5 |
| A |
904313T |
BS |
2 |
0.5-1.25 |
/ |
2.8 |
6.4 |
15.9 |
6.2 |
0.35 |
8000 |
TAB=0.8 |
| B |
914322T |
BS |
2 |
0.3-0.85 |
/ |
2.6 |
6.4 |
15.9 |
6.2 |
0.35 |
8000 |
TAB=0.5 |
| C |
904323T |
BS |
2 |
0.5-1.25 |
/ |
2.8 |
6.4 |
15.9 |
6.2 |
0.35 |
8000 |
TAB=0.8 |
| D |
905032T |
BS |
S |
0.3-0.85 |
/ |
3.8 |
6.3 |
21.0 |
10.5 |
0.4 |
5000 |
|
