110 TYPES SERIES TERMINALS

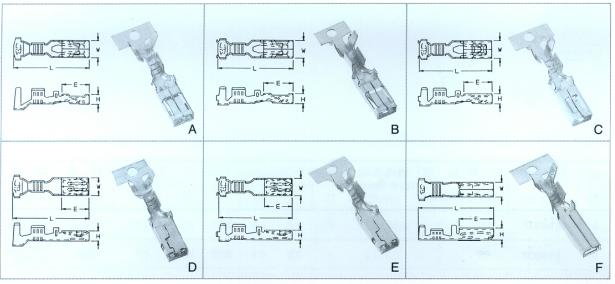

FIG PART NO. METAL TREATMENT WIRE RANGE
(mm2)		 Dimension (mm) THICKNESS Q'TY REMARK
D H W L E
A 916201T PS 5
S		 0.85-2.0 / 2.5 4.4 19.3 7.0 0.3 3000 TAB=0.8
WATER-PROOF
B 916212T KS S 0.85-2.0 / 2.5 4.4 18.5 7.0 0.3 4000 TAB=0.6
B 916213T KS S 0.3-0.85 / 2.5 4.4 18.5 7.0 0.3 5000 TAB=0.6
C 916222T BS S 0.85-2.0 / 2.5 4.4 18.5 7.0 0.3 4000 TAB=0.8
C 916223T BS S 0.3-0.85 / 2.5 4.4 18.5 7.0 0.3 5000 TAB=0.8
D 916231T PS S 0.85-2.0 / 2.5 4.4 18.8 7.0 0.3 3000 TAB=0.8
WATER-PROOF
E 916232T KS S 0.85-2.0 / 2.5 4.4 18.4 7.0 0.3 4000 TAB=0.8
E 916233T KS S 0.3-0.85 / 2.5 4.4 18.4 7.0 0.3 5000 TAB=0.8
D 916234T BS S 0.3-0.85 / 2.5 4.4 18.8 7.0 0.3 3000 TAB=0.8
WATER-PROOF
F 916242T KS S 0.85-2.0 / 3.2 4.0 20.0 9.3 0.4 2500 TAB=0.8
F 916242T PS S 0.85-2.0 / 3.2 4.0 20.0 9.3 0.4 2500 TAB=0.8
