110 TYPES
SERIES TERMINALS

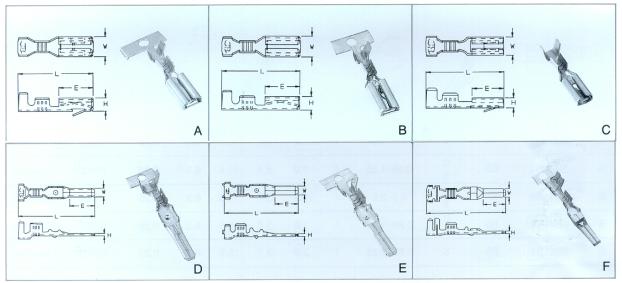

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
904151T |
BS |
0
S |
0.85-1.25 |
/ |
2.7 |
4.2 |
15.6 |
6.8 |
0.3 |
5000 |
TAB=0.5 |
| B |
904152T |
BS |
S |
0.85-1.25 |
/ |
2.7 |
4.2 |
15.6 |
6.8 |
0.3 |
5000 |
TAB=0.5 |
| C |
904162T |
BS |
S |
0.85-1.25 |
/ |
2.0 |
3.7 |
15.5 |
6.3 |
0.25 |
10000 |
TAB=0.8 |
| A |
904172T |
BS |
0
S |
0.85-1.25 |
/ |
2.7 |
4.2 |
15.6 |
6.8 |
0.25 |
5000 |
TAB=0.5 |
| C |
904182T |
PS |
S |
0.85-1.25 |
/ |
2.4 |
3.7 |
15.5 |
6.3 |
0.25 |
10000 |
TAB=0.8 |
| D |
916101T |
BS |
S |
0.85-1.25 |
/ |
0.8 |
2.8 |
24.3 |
6.9 |
0.4 |
3000 |
WATER-PROOF |
| E |
916102T |
BS |
S |
0.85-2.0 |
/ |
0.8 |
2.8 |
22.6 |
6.9 |
0.4 |
3000 |
|
| E |
916102T |
KS |
S |
0.85-2.0 |
/ |
0.8 |
2.8 |
22.6 |
6.9 |
0.4 |
3000 |
|
| E |
916103T |
BS |
S |
0.3-0.85 |
/ |
0.8 |
2.8 |
22.6 |
6.9 |
0.4 |
5000 |
|
| D |
916106T |
BS |
S |
0.3-0.85 |
/ |
0.8 |
2.8 |
24.3 |
6.9 |
0.4 |
3000 |
WATER-PROOF |
| F |
916112T |
BS |
S |
0.85-2.0 |
/ |
0.8 |
2.8 |
24.3 |
6.6 |
0.4 |
2500 |
|
NEXT PAGE
|
