090 TYPES
SERIES TERMINALS

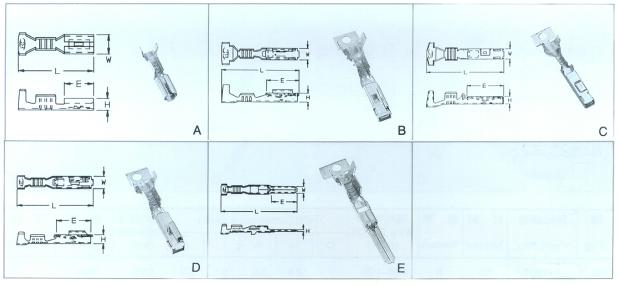

| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
*917011T |
BS |
S |
0.3-0.5 |
/ |
1.8 |
3.0 |
11.5 |
4.5 |
0.25 |
10000 |
|
| A |
917012T |
BS |
S |
0.3-0.5 |
/ |
1.8 |
3.0 |
11.5 |
4.5 |
0.25 |
10000 |
|
| B |
917047T |
KS |
S |
0.85-1.25 |
/ |
2.3 |
3.0 |
18.2 |
7.5 |
0.25 |
3000 |
|
| B |
917048T |
KS |
S |
0.3-0.5 |
/ |
2.3 |
3.0 |
18.2 |
7.5 |
0.25 |
3000 |
|
| C |
918647T |
KS |
S |
0.85-1.25 |
/ |
2.2 |
3.0 |
21.1 |
10.2 |
0.25 |
3000 |
WATER-PROOF |
| C |
918648T |
KS |
5
S |
0.3-0.5 |
/ |
2.2 |
3.0 |
21.1 |
10.2 |
0.25 |
3000 |
WATER-PROOF |
| D |
917032T |
KS |
S |
0.85-1.25 |
/ |
2.2 |
3.0 |
17.5 |
8.2 |
0.25 |
3000 |
|
| D |
917033T |
KS |
S |
0.3-0.5 |
/ |
2.2 |
3.0 |
17.5 |
8.2 |
0.25 |
4000 |
|
| E |
917132T |
KS |
S |
0.85-1.25 |
/ |
0.6 |
2.2 |
23.8 |
8.0 |
0.3 |
3000 |
|
| E |
917133T |
KS |
S |
0.3-0.5 |
/ |
0.6 |
2.2 |
23.8 |
8.0 |
0.3 |
4000 |
|
