090 TYPES

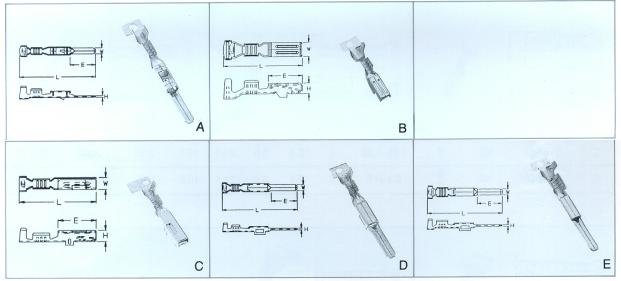

SERIES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
917161T |
BS |
S |
0.85-1.25 |
/ |
0.6 |
2.3 |
27.7 |
7.8 |
0.3 |
3000 |
|
| A |
917163T |
BS |
S |
0.3-0.5 |
/ |
2.2 |
2.3 |
27.7 |
7.8 |
0.3 |
3000 |
|
| B |
917217T |
BS |
S |
0.85-1.25 |
/ |
2.8 |
3.0 |
16.3 |
6.9 |
0.25 |
3500 |
WATER-PROOF |
| C |
917202T |
BS |
S |
0.85-1.25 |
/ |
2.8 |
3.0 |
18.1 |
8.9 |
0.25 |
3000 |
|
| C |
917203T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
3.0 |
18.1 |
8.9 |
0.25 |
4000 |
|
| D |
917301T |
BS |
S |
2.0 |
/ |
0.6 |
2.2 |
26.6 |
8.8 |
0.3 |
4000 |
|
| D |
917302T |
BS |
S |
0.85-1.25 |
/ |
0.6 |
2.2 |
26.6 |
8.8 |
0.3 |
4000 |
|
| D |
917303T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
2.2 |
26.6 |
8.8 |
0.3 |
5000 |
|
| E |
917307T |
BS |
S |
0.85-1.25 |
/ |
0.6 |
2.2 |
26.8 |
8.8 |
0.3 |
4000 |
|
NEXT PAGE
|
