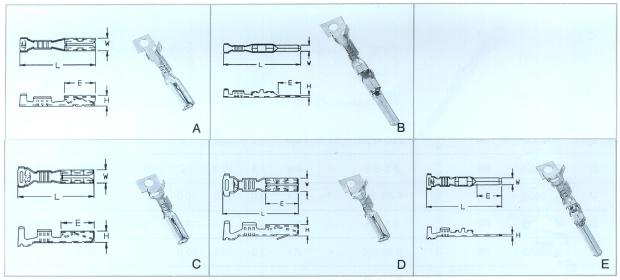

090 TYPES
SERIES TERMINALS
| FIG |
PART
NO. |
METAL |
TREATMENT |
WIRE
RANGE
(mm2) |
Dimension
(mm) |
THICKNESS |
Q'TY |
REMARK |
| D |
H |
W |
L |
E |
| A |
917000T |
BS |
S |
2.0 |
/ |
2.5 |
2.9 |
17.4 |
7.1 |
0.25 |
4000 |
|
| A |
917000T |
KS |
S |
2.0 |
/ |
2.5 |
2.9 |
17.4 |
7.1 |
0.25 |
4000 |
|
| A |
917001T |
BS |
S |
0.85-1.25 |
/ |
2.5 |
2.9 |
17.4 |
7.1 |
0.25 |
4000 |
|
| A |
917002T |
BS |
S |
0.5-0.85 |
/ |
2.5 |
2.9 |
17.4 |
7.1 |
0.25 |
4000 |
|
| A |
917003T |
BS |
S |
0.3-0.5 |
/ |
2.5 |
2.9 |
17.4 |
7.1 |
0.25 |
4000 |
|
| B |
917101T |
BS |
S |
0.85-1.25 |
/ |
0.6 |
2.2 |
26.7 |
8.0 |
0.3 |
4000 |
|
| B |
917102T |
BS |
S |
0.5-0.85 |
/ |
0.6 |
2.2 |
26.7 |
8.0 |
0.3 |
4000 |
|
| B |
917103T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
2.2 |
26.7 |
8.0 |
0.3 |
4000 |
|
| C |
917004T |
BS |
5
S |
0.85-1.25 |
/ |
2.5 |
2.9 |
16.3 |
7.1 |
0.25 |
4000 |
WATER-PROOF |
| D |
917005T |
BS |
S |
0.85-1.25 |
/ |
2.5 |
2.9 |
16.3 |
7.1 |
0.25 |
4000 |
WATER-PROOF |
| C |
917008T |
BS |
S |
0.3-0.5 |
/ |
2.5 |
2.9 |
16.3 |
7.1 |
0.25 |
4000 |
WATER-PROOF |
| C |
917021T |
BS |
S |
1.25-2.0 |
/ |
2.5 |
2.9 |
16.3 |
7.1 |
0.25 |
4000 |
WATER-PROOF |
| E |
917104T |
BS |
5
S |
0.85-1.25 |
/ |
0.6 |
2.2 |
23.6 |
8.4 |
0.3 |
4000 |
WATER-PROOF |
| E |
917108T |
BS |
S |
0.3-0.5 |
/ |
0.6 |
2.2 |
23.6 |
8.4 |
0.3 |
4000 |
WATER-PROOF |
| E |
917121T |
BS |
S |
1.25-2.0 |
/ |
0.6 |
2.2 |
23.6 |
8.4 |
0.3 |
4000 |
WATER-PROOF |
