070
SDL SERIES CONNECTORS

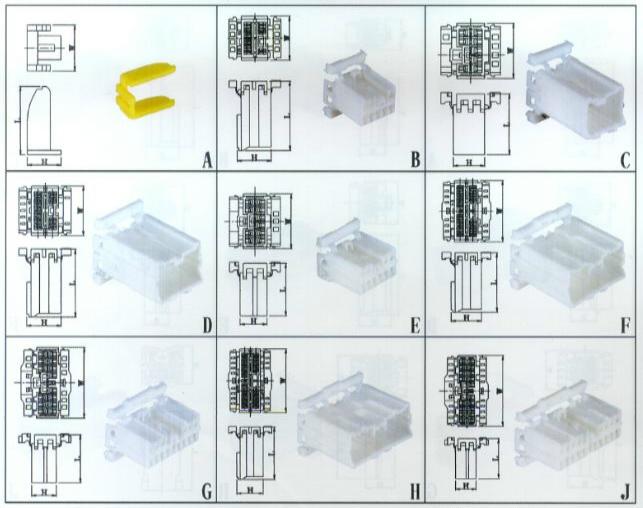

FIG
|
PART
NO.
|
Dimension
|
APPLI
CABL TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFSDL06MW-C |
18.60 |
9.50 |
12.90 |
|
PBT |
YELLOW |
500 |
|
| B |
SFSDL08FWH |
36.00 |
18.30 |
23.00 |
918604T |
PBT |
WHITE |
100 |
|
| C |
SFSDL08MWH |
23.80 |
12.60 |
21.50 |
918504T |
PBT |
WHITE |
100 |
|
| D |
SFSDL10MWH |
36.00 |
18.30 |
26.50 |
918504T |
PBT |
WHITE |
100 |
|
| E |
SFSDL10FWH |
23.80 |
12.60 |
25.10 |
918604T |
PBT |
WHITE |
100 |
|
| F |
SFSDL14MWH |
36.00 |
18.60 |
37.00 |
918504T |
PBT |
WHITE |
50 |
|
| G |
SFSDL14FWH |
23.80 |
12.80 |
35.70 |
918604T |
PBT |
WHITE |
100 |
|
| H |
SFSDL18MWH |
36.00 |
18.60 |
44.00 |
918504T |
PBT |
WHITE |
50 |
|
| J |
SFSDL18FWH |
23.80 |
12.80 |
42.60 |
918604T |
PBT |
WHITE |
50 |
|
NEXT PAGE
|
