070
SDL SERIES CONNECTORS

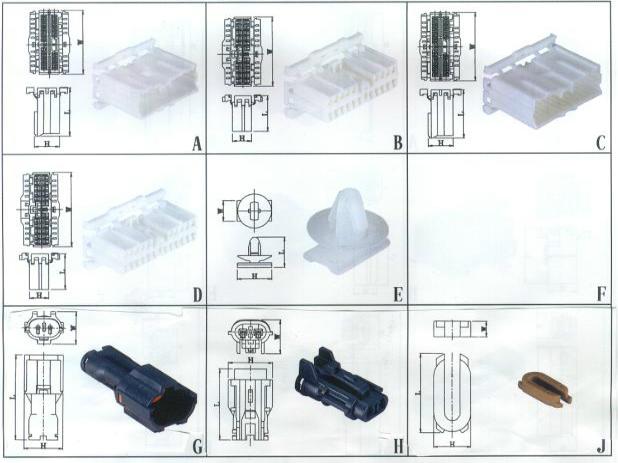

FIG
|
PART
NO.
|
Dimension
|
APPLI
CABL TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFSDL20MWH |
36.00 |
18.30 |
47.50 |
918504T |
PBT |
WHITE |
100 |
|
| B |
SFSDL20FWH |
23.80 |
12.80 |
46.00 |
918604T |
PBT |
WHITE |
100 |
|
| C |
SFSDL22MWH |
36.00 |
18.30 |
51.30 |
918504T |
PBT |
WHITE |
50 |
|
| D |
SFSDL22FWH |
23.80 |
12.80 |
50.00 |
918604T |
PBT |
WHITE |
50 |
|
| E |
SFSDL-CLIP |
13.10 |
14.90 |
8.80 |
|
PP |
NATURE |
500 |
|
| G |
SFSWP02MGYH-M |
42.20 |
19.50 |
16.50 |
918504T |
PBT |
BLACK |
100 |
|
| H |
SFSWP02FGYH-M |
23.80 |
17.60 |
13.50 |
918604T |
PBT |
BLACK |
100 |
|
| J |
SFSWP02FMGY-C |
13.10 |
6.00 |
2.50 |
|
PBT |
BROWN |
500 |
|
NEXT PAGE
|
