250 SERIES
CONNECTORS WITH LOCK (HOUSINGS LANCE TYPE)

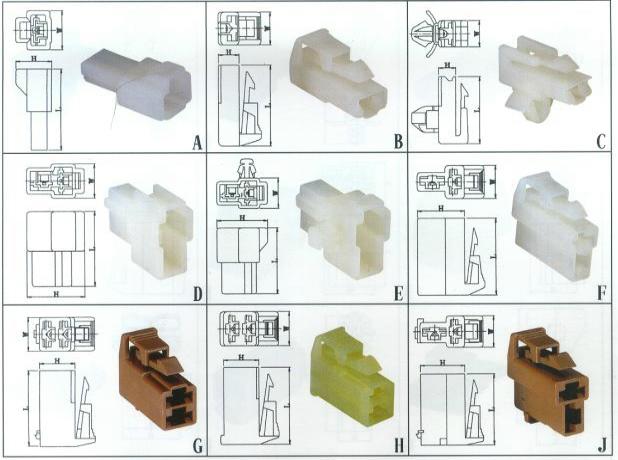

| FIG |
PART
NO. |
Dimension |
APPLICABLE
TERMINAL |
MATERIAL |
COLOR |
Q'TY/BAG |
REMARK |
| L |
H |
W |
| A |
SFCN-1ASLH |
29.00 |
12.60 |
13.50 |
905512T |
NL66 |
NATURE |
100 |
|
| B |
SFCN-1BSLH |
24.90 |
6.40 |
10.00 |
904532T |
NL66 |
NATURE |
100 |
|
| C |
SFCN-1BSPH |
25.00 |
6.40 |
10.00 |
904532T |
NL66 |
NATURE |
100 |
|
| D |
SFCN-2ASLH |
28.30 |
21.60 |
13.20 |
905512T |
NL66 |
NATURE
BLACK |
100 |
|
| E |
SFCN-2ASPH |
28.50 |
21.90 |
13.50 |
905512T |
NL66 |
NATURE |
100 |
|
| F |
SFCN-2BSLH |
25.00 |
15.30 |
10.00 |
904532T |
NL66 |
NATURE |
100 |
|
| G |
SFCN-2BHXH |
25.00 |
12.00 |
10.00 |
904532T |
PBT |
BROWN |
100 |
|
| H |
SFCN-2BHH |
25.00 |
12.20 |
10.00 |
904532T |
NL66(H) |
NATURE |
100 |
|
| J |
SFCN-2BTXH |
25.00 |
15.30 |
10.00 |
904532T |
PBT |
BROWN |
100 |
|
