250 SERIES CONNECTORS WITH LOCK (TERMINAL LANCE TYPE)

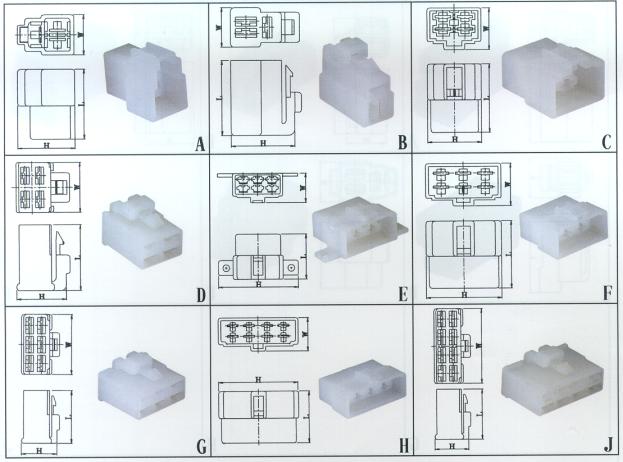

FIG PART NO. Dimension APPLICABLE
TERMINAL		 MATERIAL COLOR Q'TY/BAG REMARK
L H W
A SFRB-3ASLH 28.50 23.20 16.50 905502T PP
NL66		 NATURE 200 　
B SFRB-3BSLH 24.80 21.20 13.00 904502T PP
NL66		 NATURE 200 　
C SFRB-4ASLH 28.50 22.60 18.00 905502T PP
NL66		 NATURE 100 　
D SFRB-4BSLH 24.80 17.80 19.10 904502T PP
NL66		 NATURE 100 　
E SFRB-6ASFH 28.30 49.70 18.20 905502T PP
NL66		 NATURE 100 　
F SFRB-6ASLH 28.50 31.50 18.40 905502T PP
NL66		 NATURE
BLACK		 100 　
G SFRB-6BSLH 24.80 17.00 27.80 904502T PP
NL66		 NATURE
BLACK		 100 　
H SFRB-8ASLH 28.50 40.50 18.00 905502T PP
NL66		 NATURE
BLACK		 100 　
J SFRB-8BSLH 24.80 17.10 37.00 904502T PP
NL66		 NATURE
BLACK		 100 　
