090
HD SERIES CONNECTORS

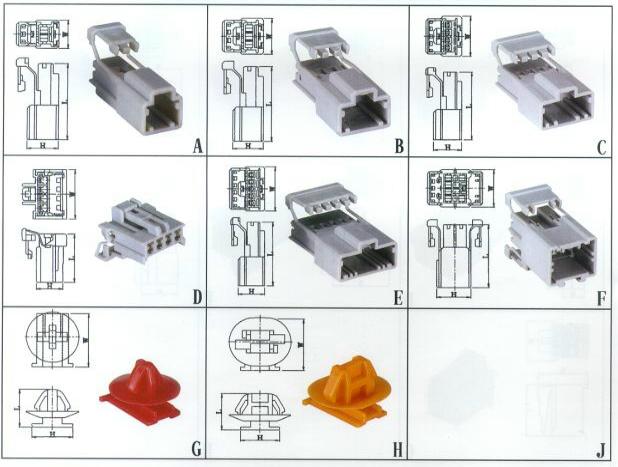

FIG
|
PART NO.
|
Dimension
|
APPLICABLE TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFHD-2MH |
36.50 |
14.40 |
13.60 |
917102T |
PBT |
GREY |
200 |
|
| B |
SFHD-3MH |
36.50 |
14.40 |
17.60 |
917102T |
PBT |
GREY |
100 |
|
| C |
SFHD-4MH |
36.50 |
14.40 |
21.50 |
917102T |
PBT |
GREY |
100 |
|
| D |
SFHD-4FH |
21.10 |
11.10 |
21.70 |
917002T |
PBT |
GREY |
100 |
|
| E |
SFHD-5MH |
36.50 |
14.00 |
25.40 |
917102T |
PBT |
GREY |
100 |
|
| F |
SFHD-6MH |
36.50 |
18.70 |
21.60 |
917102T |
PBT |
GREY |
100 |
|
| G |
SFHD-CLIP |
11.70 |
12.00 |
16.70 |
|
NL66 |
RED |
100 |
|
| H |
SFHD-CLIP-2 |
12.00 |
12.00 |
16.70 |
|
NL66 |
ORANGE |
100 |
|
