090 SERIES
CONNECTORS

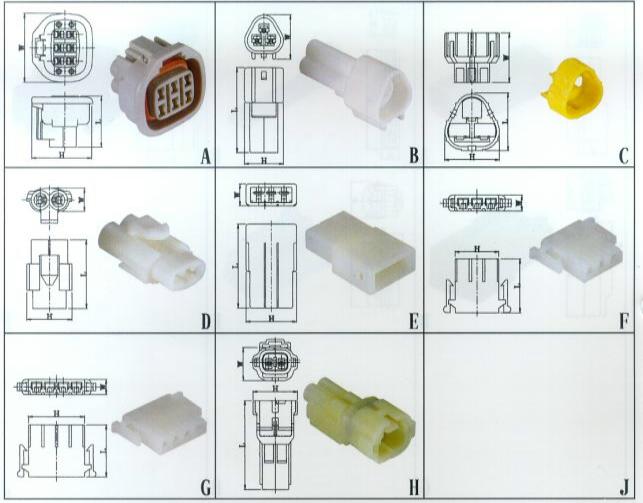

FIG
|
PART NO.
|
Dimension
|
APPLICABLE
TERMINAL
|
MATERIAL
|
COLOR
|
Q'TY/BAG
|
REMARK
|
| L |
H |
W |
| A |
SFSC06FGYH |
23.00 |
28.50 |
31.00 |
917004T |
PBT |
GREY |
100 |
|
| B |
SFJ12FT/LH-A |
36.40 |
17.40 |
18.80 |
917102T |
PBT |
WHITE |
200 |
|
| C |
SFJ12FT/L-B |
14.10 |
14.20 |
12.30 |
|
PBT |
YELLOW |
500 |
|
| D |
SFJ12FT/LH-C |
23.60 |
16.20 |
8.20 |
917004T |
PBT |
WHITE |
200 |
|
| E |
SFJEY-3MH |
25.30 |
15.90 |
6.60 |
T090J |
NL66 |
RED |
200 |
PATENT |
| F |
SFJEY-3PH |
15.00 |
12.90 |
4.30 |
917012T |
NL66 |
NATURE
BLACK
RED |
100 |
|
| G |
SFJEY-4PH |
15.00 |
15.30 |
4.30 |
917012T |
NL66 |
NATURE |
100 |
|
| H |
SFHMA-2ASLH |
40.70 |
21.20 |
15.00 |
917104T |
NL66(H) |
NATURE |
100 |
|
